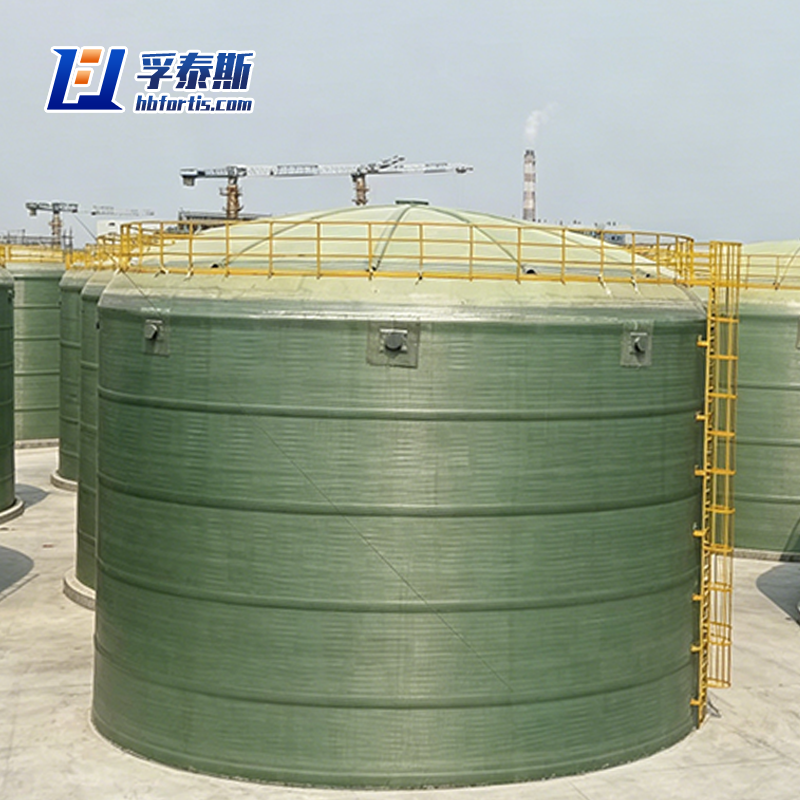

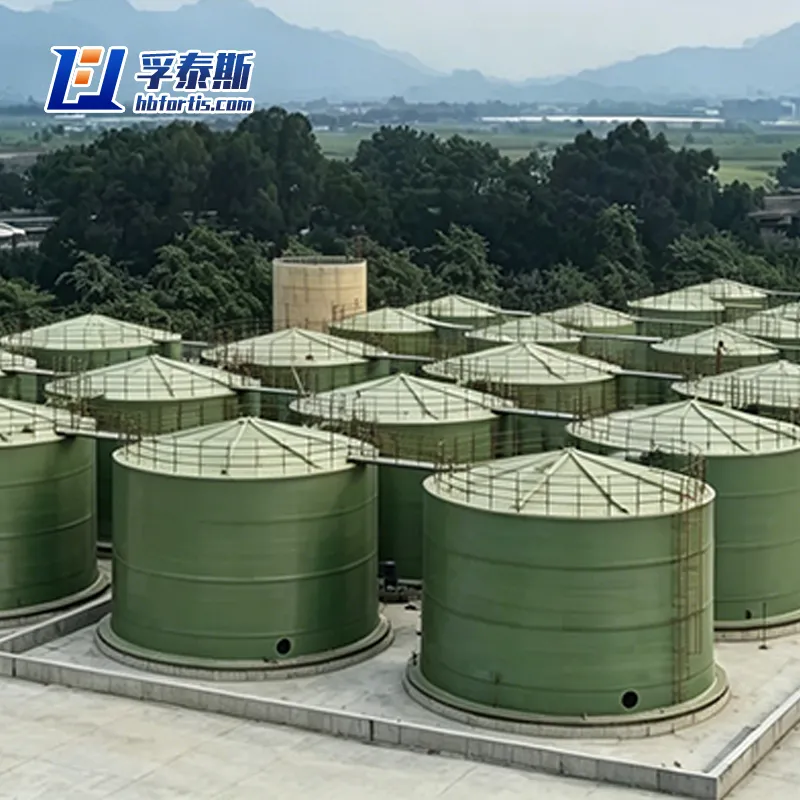

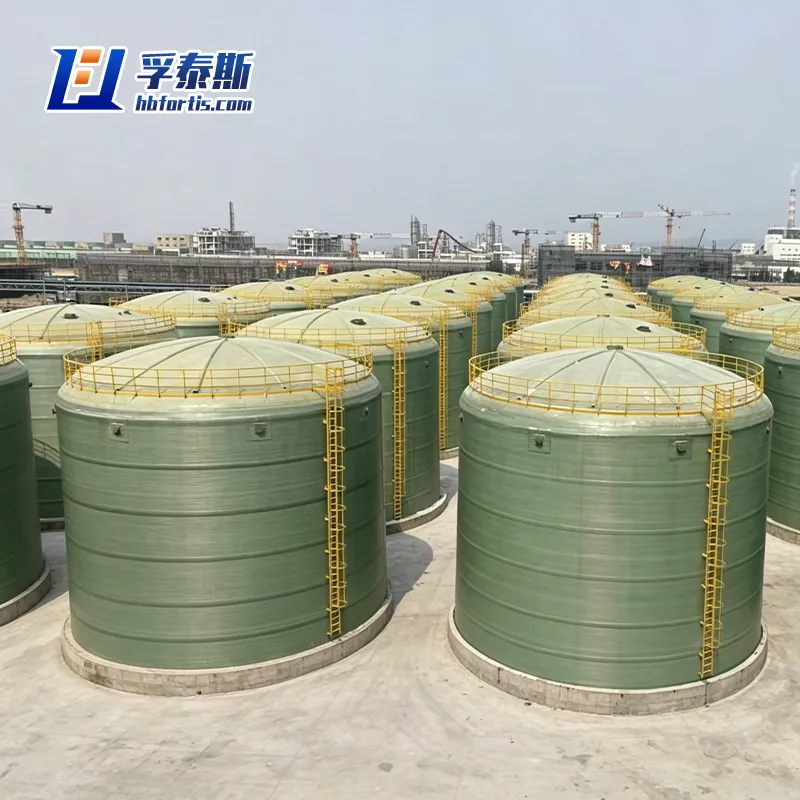

GFRP Vertical Storage Tank for Chemical & Water Treatment | China Exporter FT-VST50e

As a specialized Chinese exporter, we manufacture GFRP vertical storage tanks engineered for demanding industrial environments, including chemical dosing systems, potable water reservoirs, and high-salinity wastewater neutralization. Our filament-wound construction ensures superior hoop strength and permeation barrier, effectively extending service life beyond 20 years under UV-exposed outdoor conditions. Each tank is custom-fabricated from 1m³ to 100m³ with flanged outlets, manholes, and level-gauge ports to match your site layout. Backed by ISO 9001 and ASME RTP-1 compliance, we offer end-to-end logistics support, from load calculation to on-site assembly guidance, ensuring your bulk liquid storage remains safe, maintenance-free, and cost-efficient over its entire lifecycle.

Брошюра о продукте Hebei Fortis Technology Co., Ltd

Скачать

Спросите сейчас Следующий продукт

Product Advantages Parameter Specifications

Product Advantages

Superior Corrosion Resistance Across a Wide pH Spectrum
Our FRP vertical storage tanks are formulated with custom vinyl ester or isophthalic resin systems that withstand aggressive media ranging from 31% hydrochloric acid and 98% sulfuric acid to alkaline brines and municipal leachate. The inner corrosion barrier incorporates a C-glass veil with 90% resin content, effectively preventing osmotic blistering and chemical attack even at elevated service temperatures up to 120°C. This eliminates the need for costly rubber linings or titanium cladding commonly required for metallic tanks.

Engineered Structural Integrity Under High Hydrostatic Heads
We employ computer-controlled filament winding with continuous helical and hoop layers, precisely calculating wall thickness increments from the top knuckle down to the bottom shell. This gradient design ensures that each section handles its specific liquid head pressure without over-engineering the entire vessel. External rib stiffeners are optionally integrated to prevent ovality and buckling when tanks are installed in seismic zones or hurricane-prone coastal regions, backed by full FEA (Finite Element Analysis) reports delivered with every quotation.

Customizable Nozzle Orientation, Manways, and Accessories
Unlike off-the-shelf plastic or steel tanks, every FRP vertical vessel we export is built to your P&ID requirements—including offset inlet deflectors, side-entry agitator baffles, dual manways for confined-space entry, and multiple instrument ports for level transmitters and temperature probes. We also integrate flanged outlets with bolt-hole alignment per ANSI or DIN standards, ensuring seamless connectivity to your existing pipework without field modifications, which cuts installation labor by up to 30%.

Parameter Specifications

Product	Vertical Storage Tank

Model		M³	Diameter(mm)	Length(mm)
FT-VST0.1a		0.1	400	850
FT-VST0.1b		0.1	600	430
FT-VST0.2a		0.2	400	1650
FT-VST0.2b		0.2	600	780
FT-VST0.2c		0.2	800	490
FT-VST0.5a		0.5	600	1840
FT-VST0.5b		0.5	800	1090
FT-VST0.5c		0.5	1000	740
FT-VST1a		1	800	2080
FT-VST1b		1	1000	1380
FT-VST2a		2	1000	2650
FT-VST2b		2	1200	1890
FT-VST2c		2	1400	1440
FT-VST3a		3	1200	2780
FT-VST3b		3	1400	2090
FT-VST3c		3	1500	1850
FT-VST4a		4	1200	3660
FT-VST4b		4	1400	2980
FT-VST4c		4	1500	2410
FT-VST4d		4	1600	2150
FT-VST5a		5	1400	3550
FT-VST5b		5	1500	2980
FT-VST5c		5	1600	2650
FT-VST6a		6	1500	3550
FT-VST6b		6	1600	3140
FT-VST7a		7	1600	3640
FT-VST7b		7	1800	2930
FT-VST8a		8	1600	4140
FT-VST8b		8	1800	3320
FT-VST9a		9	1600	4630
FT-VST9b		9	1800	3710
FT-VST9c		9	2000	3060
FT-VST10a		10	1600	5130
FT-VST10b		10	1800	4100
FT-VST10c		10	2000	3370
FT-VST11a		11	1600	5630
FT-VST11b		11	1800	4500
FT-VST11c		11	2000	3690
FT-VST11d		11	2200	3100
FT-VST12a		12	1800	4890
FT-VST12b		12	2000	4010
FT-VST12c		12	2200	3370
FT-VST15a		15	1800	6070
FT-VST15b		15	2000	4970
FT-VST15c		15	2200	4150
FT-VST18a		18	1800	7250
FT-VST18b		18	2000	5920
FT-VST18c		18	2200	4940
FT-VST20a		20	1800	8030
FT-VST20b		20	2000	6560
FT-VST20c		20	2200	5470
FT-VST25a		25	2000	8150
FT-VST25b		25	2200	6790
FT-VST30a		30	2200	8100
FT-VST30b		30	2400	6860
FT-VST30c		30	2500	6340
FT-VST30d		30	2600	5890
FT-VST30e		30	2800	5130
FT-VST30f		30	3000	4530
FT-VST30g		30	3200	4030
FT-VST30h		30	3400	3620
FT-VST35a		35	2400	7960
FT-VST35b		35	2500	7360
FT-VST35c		35	2600	6830
FT-VST35d		35	2800	5940
FT-VST35e		35	3000	5240
FT-VST35f		35	3200	4650
FT-VST35g		35	3400	4170
FT-VST35h		35	3500	3960
FT-VST35i		35	3600	3770
FT-VST40a		40	2400	9070
FT-VST40b		40	2500	8380
FT-VST40c		40	2600	7780
FT-VST40d		40	2800	6750
FT-VST40e		40	3000	5940
FT-VST40f		40	3200	5280
FT-VST40g		40	3400	4720
FT-VST40h		40	3500	4480
FT-VST40i		40	3600	4260
FT-VST40j		40	3800	3880
FT-VST45a		45	2500	9400
FT-VST45b		45	2600	8720
FT-VST45c		45	2800	7570
FT-VST45d		45	3000	6650
FT-VST45e		45	3200	5900
FT-VST45f		45	3400	5270
FT-VST45g		45	3500	5000
FT-VST45h		45	3600	4760
FT-VST45i		45	3800	4320
FT-VST50a		50	2600	9660
FT-VST50b		50	2800	8380
FT-VST50c		50	3000	7360
FT-VST50d		50	3200	6520
FT-VST50e		50	3400	5830
FT-VST50f		50	3500	5520
FT-VST50g		50	3600	5250
FT-VST50h		50	3800	4760
FT-VST50i		50	4000	4350
FT-VST55a		55	2800	9190
FT-VST55b		55	3000	8070
FT-VST55c		55	3200	7140
FT-VST55d		55	3400	6380
FT-VST55e		55	3500	6040
FT-VST55f		55	3600	5740
FT-VST55g		55	3800	5200
FT-VST55h		55	4000	4750
FT-VST60a		60	3000	10000
FT-VST60b		60	3000	8770
FT-VST60c		60	3200	7760
FT-VST60d		60	3400	6930
FT-VST60e		60	3500	6560
FT-VST60f		60	3600	6230
FT-VST60g		60	3800	5640
FT-VST60h		60	4000	5140
FT-VST65a		65	3000	9480
FT-VST65b		65	3200	8380
FT-VST65c		65	3400	7480
FT-VST65d		65	3500	7080
FT-VST65e		65	3600	6720
FT-VST65f		65	3800	6080
FT-VST65g		65	4000	5540
FT-VST70a		70	3000	10190
FT-VST70b		70	3200	9010
FT-VST70c		70	3400	8030
FT-VST70d		70	3500	7600
FT-VST70e		70	3600	7210
FT-VST70f		70	3800	6520
FT-VST70g		70	4000	5940
FT-VST75a		75	3200	9630
FT-VST75b		75	3400	8580
FT-VST75c		75	3500	8120
FT-VST75d		75	3600	7700
FT-VST75e		75	3800	6960
FT-VST75f		75	4000	6340
FT-VST80a		80	3200	10250
FT-VST80b		80	3400	9130
FT-VST80c		80	3500	8640
FT-VST80d		80	3600	8190
FT-VST80e		80	3800	7410
FT-VST80f		80	4000	6730
FT-VST89a		89	3400	9680
FT-VST89b		89	3500	9160
FT-VST89c		89	3600	8690
FT-VST89d		89	3800	7850
FT-VST89e		89	4000	7130
FT-VST90a		90	3400	10230
FT-VST90b		90	3500	9680
FT-VST90c		90	3600	9180
FT-VST90d		90	3800	8090
FT-VST90e		90	4000	7530
FT-VST95a		95	3500	10200
FT-VST95b		95	3600	9670
FT-VST95c		95	3800	8730
FT-VST95d		95	4000	7930
FT-VST100a		100	4000	8330
FT-VST100b		100	3800	9170
FT-VST100c		100	4000	10160
FT-VST120		120	4000	9920
FT-VST130		130	4000	10710
FT-VST140		140	4000	11510
FT-VST150		150	4000	12310
