We are a leading Chinese manufacturer and exporter of GFRP horizontal storage tanks, designed specifically for underground and ground-level liquid storage in gas stations, chemical plants, wastewater treatment facilities, and offshore oil platforms. Our horizontal tanks offer superior structural strength with saddle supports, external UV-resistant coating, and optional secondary containment for double-wall safety. They are ideal for storing diesel, gasoline, hydrochloric acid, caustic soda, firewater, and industrial effluents in space-constrained or low-ceiling environments. We provide full customization of diameter, length, inlet/outlet positions, and manway access, ensuring seamless integration with your piping system. Every tank undergoes 100% hydrostatic testing and spark testing before shipment, with detailed quality documentation. With competitive factory pricing, prompt delivery, and dedicated after-sales technical support, we are your trusted long-term GFRP horizontal storage tank partner for projects requiring reliability and regulatory compliance. Contact us with your storage capacity and media specifications, and we will propose the optimal horizontal tank solution within 48 hours.
Брошюра о продукте Hebei Fortis Technology Co., Ltd
Product Advantages
Our horizontal FRP storage tanks deliver five distinct competitive advantages that directly address the pain points of plant engineers and procurement managers.
First, corrosion immunity – formulated with vinyl ester or bisphenol-A resin liners, our tanks withstand pH ranges from 1 to 14, aggressive organic solvents, and high-chloride seawater without pitting or stress-cracking, eliminating the costly epoxy recoating required for steel tanks every 18–24 months.
Second, structural efficiency in horizontal orientation – the low-profile cylindrical design reduces foundation load by 35% versus vertical towers, enables gravity-fed drainage with minimal heel (residual liquid <2%), and allows safe stacking or tandem installation inside existing pump stations, container frames, or trench bunds where ceiling height is restricted.
Third, weight-driven logistics savings – at only one-seventh the density of carbon steel, a 30,000-liter horizontal unit can be shipped via flat-rack container without overweight surcharges, and installed using a single 25-ton mobile crane instead of heavy-lift equipment, cutting on-site erection time from three days to under six hours.
Fourth, maintenance-free outer layer – our UV-resistant gelcoat (tested to 3,000 hours QUV) prevents chalking and fiber blooming, while the smooth internal surface (Ra < 3.2 μm) resists bacterial biofilm and scale deposition, reducing cleaning frequency by 50% in food-grade or potable-water applications.
Fifth, design flexibility – we tailor nozzle orientations, manway diameters (up to 600 mm), integral stiffening ribs, and saddle supports to your specific anchor-bolt pattern, with optional secondary containment shells or heating/cooling coils embedded during winding—all backed by a 15-year warranty against blowout and a guaranteed hoop-stress safety factor of 10:1 at maximum operating pressure.

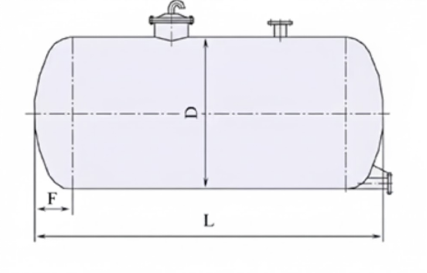

Parameter Specifications
|
Product |
Horizontal Storage Tank |
|||
|
F=D/4 |
||||
|
Model |
Volume(m³) |
Diameter(mm) |
Height(mm) |
Number of Supports N1 |
|
FT-HST1 |
1 |
1000 |
1450 |
2 |
|
FT-HST2a |
2 |
1000 |
2730 |
3 |
|
FT-HST2b |
2 |
1200 |
1990 |
2 |
|
FT-HST2c |
2 |
1400 |
1560 |
2 |
|
FT-HST3a |
3 |
1000 |
4010 |
4 |
|
FT-HST3b |
3 |
1200 |
2870 |
2 |
|
FT-HST3c |
3 |
1400 |
2200 |
2 |
|
FT-HST4a |
4 |
1200 |
3760 |
3 |
|
FT-HST4b |
4 |
1400 |
2850 |
3 |
|
FT-HST5 |
5 |
1400 |
3500 |
3 |
|
FT-HST6 |
6 |
1600 |
3300 |
2 |
|
FT-HST7 |
7 |
1600 |
3800 |
3 |
|
FT-HST8a |
8 |
1600 |
4300 |
3 |
|
FT-HST9 |
9 |
1600 |
4780 |
3 |
|
FT-HST10a |
10 |
1600 |
5300 |
3 |
|
FT-HST10b |
10 |
2000 |
4250 |
3 |
|
FT-HST11a |
11 |
1600 |
5800 |
4 |
|
FT-HST11b |
11 |
2000 |
4640 |
3 |
|
FT-HST12a |
12 |
1600 |
6280 |
4 |
|
FT-HST12b |
12 |
2000 |
5040 |
3 |
|
FT-HST12c |
12 |
2200 |
3540 |
2 |
|
FT-HST15a |
15 |
2000 |
6220 |
3 |
|
FT-HST15b |
15 |
2200 |
4330 |
2 |
|
FT-HST15c |
15 |
2400 |
3750 |
2 |
|
FT-HST18a |
18 |
2000 |
7400 |
4 |
|
FT-HST18b |
18 |
2200 |
5120 |
2 |
|
FT-HST18c |
18 |
2400 |
4410 |
2 |
|
FT-HST20a |
20 |
2000 |
8190 |
4 |
|
FT-HST20b |
20 |
2200 |
5650 |
3 |
|
FT-HST20c |
20 |
2400 |
4850 |
2 |
|
FT-HST20d |
20 |
2600 |
4220 |
2 |
|
FT-HST25a |
25 |
2000 |
8310 |
4 |
|
FT-HST25b |
25 |
2200 |
6960 |
3 |
|
FT-HST25c |
25 |
2400 |
5960 |
2 |
|
FT-HST25d |
25 |
2600 |
5160 |
2 |
|
FT-HST25e |
25 |
2800 |
3740 |
2 |
|
FT-HST30a |
30 |
2200 |
8280 |
4 |
|
FT-HST30b |
30 |
2400 |
7060 |
3 |
|
FT-HST30c |
30 |
2600 |
6100 |
3 |
|
FT-HST30d |
30 |
2800 |
4560 |
2 |
|
FT-HST30e |
30 |
3000 |
4100 |
2 |
|
FT-HST35a |
35 |
2400 |
8170 |
3 |
|
FT-HST35b |
35 |
2600 |
7050 |
3 |
|
FT-HST35c |
35 |
2800 |
5370 |
2 |
|
FT-HST35d |
35 |
3000 |
4820 |
2 |
|
FT-HST40a |
40 |
2400 |
9270 |
3 |
|
FT-HST40b |
40 |
2600 |
7990 |
3 |
|
FT-HST40c |
40 |
2800 |
6180 |
2 |
|
FT-HST40d |
40 |
3000 |
5520 |
2 |
|
FT-HST50a |
50 |
2600 |
9870 |
4 |
|
FT-HST50b |
50 |
2800 |
6990 |
2 |
|
FT-HST50c |
50 |
3000 |
6240 |
3 |
|
FT-HST60a |
60 |
2800 |
8620 |
3 |
|
FT-HST60b |
60 |
3000 |
7660 |
3 |
|
FT-HST70a |
70 |
2800 |
10240 |
3 |
|
FT-HST70b |
70 |
3000 |
9050 |
3 |
|
FT-HST80a |
80 |
3000 |
10470 |
4 |
|
FT-HST80b |
80 |
3000 |
11880 |
4 |
Связанные продукты
Heavy-Duty GFRP Scrubbing Tower for Chemical Exhaust | China Factory Direct FT-ST8
Engineered for high-temp acid mist & VOC removal. Our GFRP scrubbing towers offer 30% less weight vs steel, anti-UV aging, and customized packing layers. Get ISO-certified flue gas treatment solutions with fast lead times.

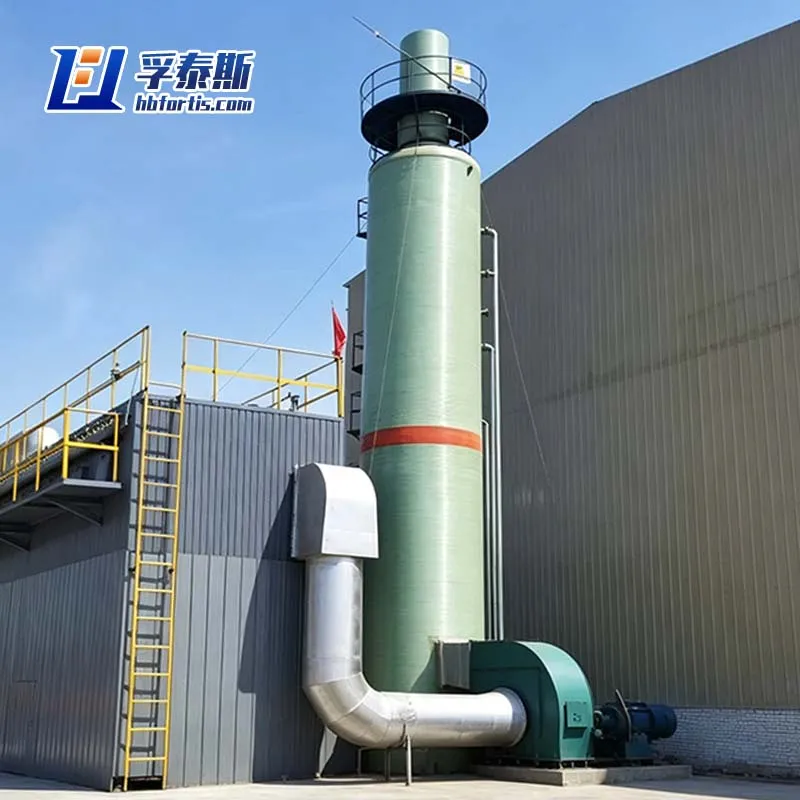

GFRP Scrubbing Tower for Chemical & Power Plant Flue Gas | Factory Direct Exporter FT-ST7
