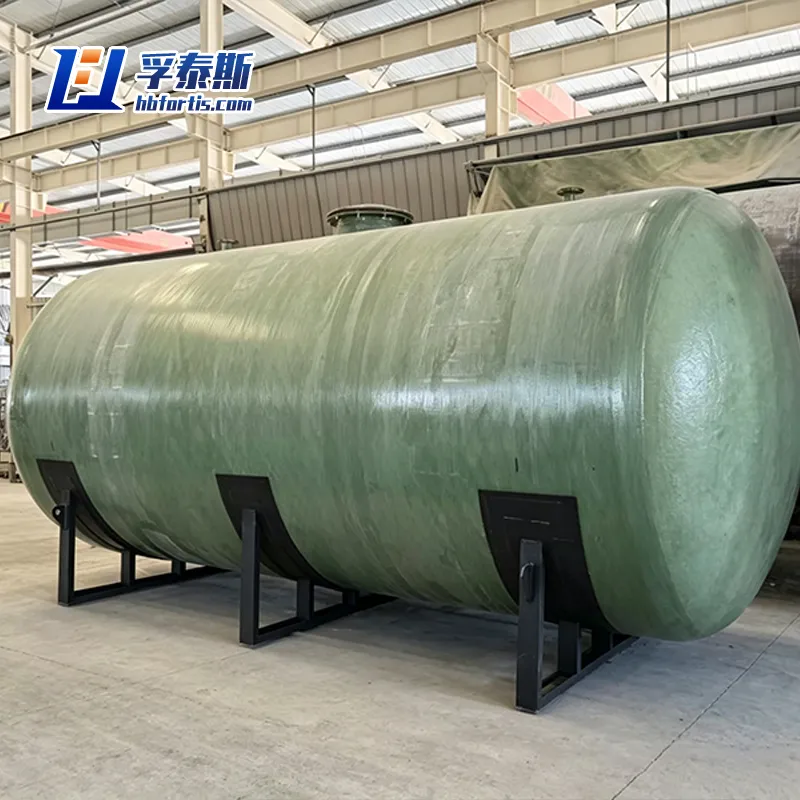

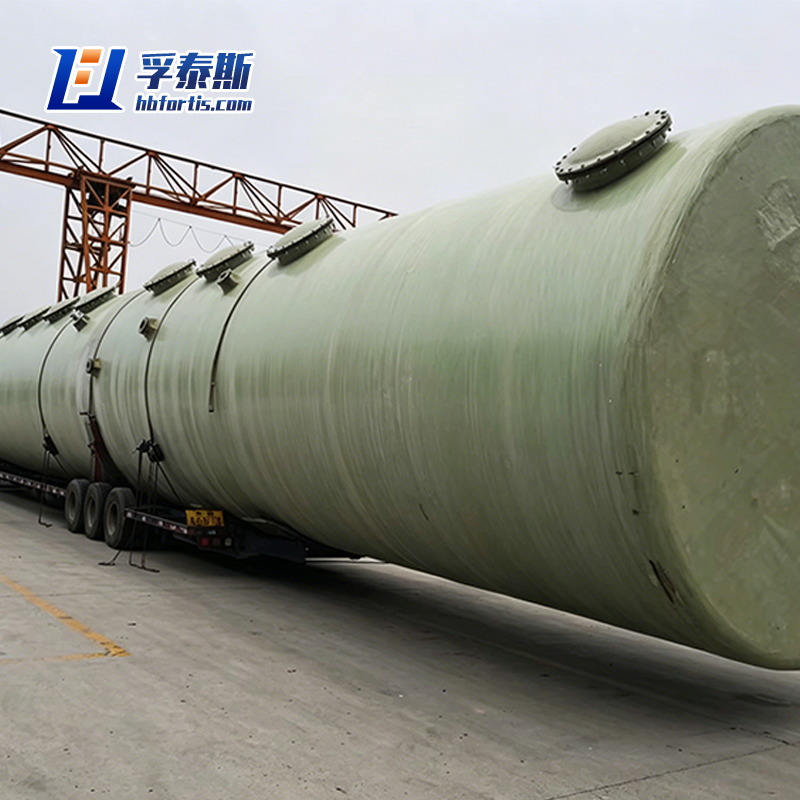

As a dedicated Chinese exporter, we engineer GFRP horizontal storage tanks to solve spatial and stability challenges where vertical towers are impractical—including underground vaults, truck-mounted mobile dosing units, and low-clearance plant basements. Our horizontal configuration lowers the center of gravity by 40% compared to vertical equivalents, significantly reducing seismic overturning risk and allowing shallow excavation depths for buried installations. We integrate continuous helical winding with axial reinforcement to counteract bending stresses along the cylindrical shell, ensuring uniform load distribution even when partially buried under 1.5 meters of backfill. Additional secondary containment sumps, interstitial monitoring ports, and anti-buoyancy anchoring lugs are factory-molded as integral components. With sectional transport capability up to 12 meters in length and stackable steel frames for container shipping, we deliver turnkey solutions that cut on-site welding and concrete works by 60%, making your project timeline more predictable from PO to installation.
Брошюра о продукте Hebei Fortis Technology Co., Ltd
Product Advantages
Our horizontal FRP storage tanks deliver five distinct competitive advantages that directly address the pain points of plant engineers and procurement managers.
First, corrosion immunity – formulated with vinyl ester or bisphenol-A resin liners, our tanks withstand pH ranges from 1 to 14, aggressive organic solvents, and high-chloride seawater without pitting or stress-cracking, eliminating the costly epoxy recoating required for steel tanks every 18–24 months.
Second, structural efficiency in horizontal orientation – the low-profile cylindrical design reduces foundation load by 35% versus vertical towers, enables gravity-fed drainage with minimal heel (residual liquid <2%), and allows safe stacking or tandem installation inside existing pump stations, container frames, or trench bunds where ceiling height is restricted.
Third, weight-driven logistics savings – at only one-seventh the density of carbon steel, a 30,000-liter horizontal unit can be shipped via flat-rack container without overweight surcharges, and installed using a single 25-ton mobile crane instead of heavy-lift equipment, cutting on-site erection time from three days to under six hours.
Fourth, maintenance-free outer layer – our UV-resistant gelcoat (tested to 3,000 hours QUV) prevents chalking and fiber blooming, while the smooth internal surface (Ra < 3.2 μm) resists bacterial biofilm and scale deposition, reducing cleaning frequency by 50% in food-grade or potable-water applications.
Fifth, design flexibility – we tailor nozzle orientations, manway diameters (up to 600 mm), integral stiffening ribs, and saddle supports to your specific anchor-bolt pattern, with optional secondary containment shells or heating/cooling coils embedded during winding—all backed by a 15-year warranty against blowout and a guaranteed hoop-stress safety factor of 10:1 at maximum operating pressure.
Parameter Specifications
|
Product |
Horizontal Storage Tank |
|||
|
F=D/4 |
||||
|
Model |
Volume(m³) |
Diameter(mm) |
Height(mm) |
Number of Supports N1 |
|
FT-HST1 |
1 |
1000 |
1450 |
2 |
|
FT-HST2a |
2 |
1000 |
2730 |
3 |
|
FT-HST2b |
2 |
1200 |
1990 |
2 |
|
FT-HST2c |
2 |
1400 |
1560 |
2 |
|
FT-HST3a |
3 |
1000 |
4010 |
4 |
|
FT-HST3b |
3 |
1200 |
2870 |
2 |
|
FT-HST3c |
3 |
1400 |
2200 |
2 |
|
FT-HST4a |
4 |
1200 |
3760 |
3 |
|
FT-HST4b |
4 |
1400 |
2850 |
3 |
|
FT-HST5 |
5 |
1400 |
3500 |
3 |
|
FT-HST6 |
6 |
1600 |
3300 |
2 |
|
FT-HST7 |
7 |
1600 |
3800 |
3 |
|
FT-HST8a |
8 |
1600 |
4300 |
3 |
|
FT-HST9 |
9 |
1600 |
4780 |
3 |
|
FT-HST10a |
10 |
1600 |
5300 |
3 |
|
FT-HST10b |
10 |
2000 |
4250 |
3 |
|
FT-HST11a |
11 |
1600 |
5800 |
4 |
|
FT-HST11b |
11 |
2000 |
4640 |
3 |
|
FT-HST12a |
12 |
1600 |
6280 |
4 |
|
FT-HST12b |
12 |
2000 |
5040 |
3 |
|
FT-HST12c |
12 |
2200 |
3540 |
2 |
|
FT-HST15a |
15 |
2000 |
6220 |
3 |
|
FT-HST15b |
15 |
2200 |
4330 |
2 |
|
FT-HST15c |
15 |
2400 |
3750 |
2 |
|
FT-HST18a |
18 |
2000 |
7400 |
4 |
|
FT-HST18b |
18 |
2200 |
5120 |
2 |
|
FT-HST18c |
18 |
2400 |
4410 |
2 |
|
FT-HST20a |
20 |
2000 |
8190 |
4 |
|
FT-HST20b |
20 |
2200 |
5650 |
3 |
|
FT-HST20c |
20 |
2400 |
4850 |
2 |
|
FT-HST20d |
20 |
2600 |
4220 |
2 |
|
FT-HST25a |
25 |
2000 |
8310 |
4 |
|
FT-HST25b |
25 |
2200 |
6960 |
3 |
|
FT-HST25c |
25 |
2400 |
5960 |
2 |
|
FT-HST25d |
25 |
2600 |
5160 |
2 |
|
FT-HST25e |
25 |
2800 |
3740 |
2 |
|
FT-HST30a |
30 |
2200 |
8280 |
4 |
|
FT-HST30b |
30 |
2400 |
7060 |
3 |
|
FT-HST30c |
30 |
2600 |
6100 |
3 |
|
FT-HST30d |
30 |
2800 |
4560 |
2 |
|
FT-HST30e |
30 |
3000 |
4100 |
2 |
|
FT-HST35a |
35 |
2400 |
8170 |
3 |
|
FT-HST35b |
35 |
2600 |
7050 |
3 |
|
FT-HST35c |
35 |
2800 |
5370 |
2 |
|
FT-HST35d |
35 |
3000 |
4820 |
2 |
|
FT-HST40a |
40 |
2400 |
9270 |
3 |
|
FT-HST40b |
40 |
2600 |
7990 |
3 |
|
FT-HST40c |
40 |
2800 |
6180 |
2 |
|
FT-HST40d |
40 |
3000 |
5520 |
2 |
|
FT-HST50a |
50 |
2600 |
9870 |
4 |
|
FT-HST50b |
50 |
2800 |
6990 |
2 |
|
FT-HST50c |
50 |
3000 |
6240 |
3 |
|
FT-HST60a |
60 |
2800 |
8620 |
3 |
|
FT-HST60b |
60 |
3000 |
7660 |
3 |
|
FT-HST70a |
70 |
2800 |
10240 |
3 |
|
FT-HST70b |
70 |
3000 |
9050 |
3 |
|
FT-HST80a |
80 |
3000 |
10470 |
4 |
|
FT-HST80b |
80 |
3000 |
11880 |
4 |
