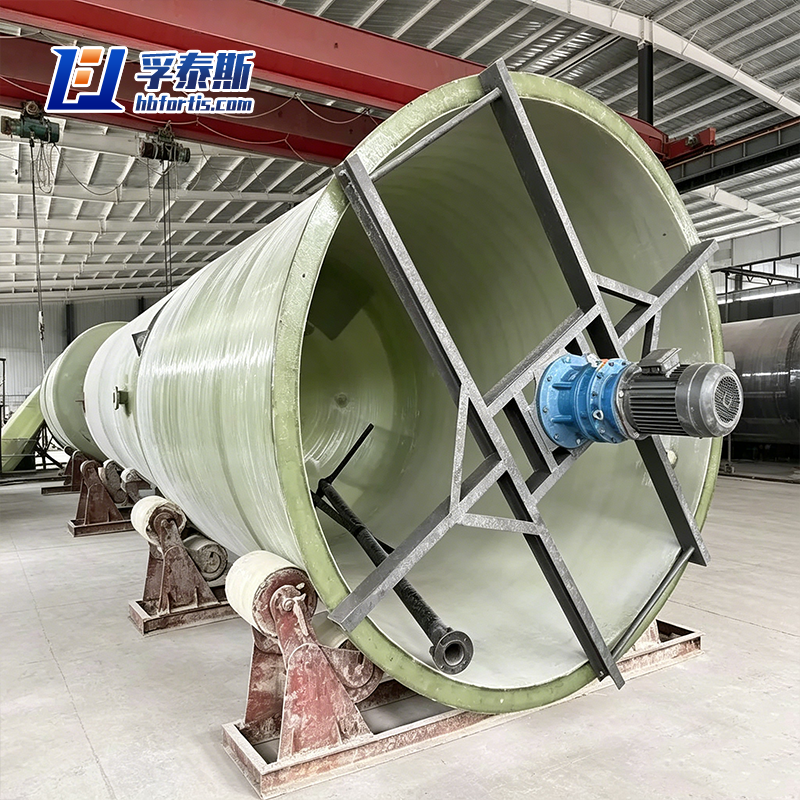

Our FRP Agitator Tank (Fiberglass Reinforced Plastic mixing vessel) is engineered to replace stainless steel, rubber-lined, or PP tanks in highly corrosive mixing applications. Traditional metal tanks suffer from pitting, chloride stress corrosion cracking, and metal ion leaching — contaminating sensitive batches and requiring costly replacement every 2–3 years.
Manufactured by filament winding or hand lay-up with ISO polyester/vinyl ester/epoxy resin, our FRP agitator tank offers complete corrosion resistance to over 300 chemicals including strong acids (H₂SO₄, HCl, HNO₃), alkalis (NaOH, KOH), salts, and organic solvents. The seamless, monolithic construction eliminates weak points. The inner surface is smooth (roughness ≤0.3mm) and can be lined with anti-corrosion veil for extra protection. We integrate industrial agitators (top entry, side entry, or bottom entry) with customized impeller types — turbine, propeller, anchor, or paddle — matched to your viscosity and mixing duty. Operating temperature range: -10°C to 100°C (resin dependent). Available volume: 200L to 150m³. It is the ideal mixing tank for chemical processing, hydrometallurgy, water treatment, electroplating, and pharmaceutical intermediates where purity and corrosion resistance are critical.
Брошюра о продукте Hebei Fortis Technology Co., Ltd
Product Advantages
Superior Chemical Resistance – Resists over 300 corrosive media including 98% sulfuric acid, 35% hydrochloric acid, 50% sodium hydroxide, and various solvents. No lining failure or pitting corrosion like metal tanks.
No Metal Ion Contamination – FRP is non-metallic and inert. Safe for electroplating solutions, pharmaceutical intermediates, food-grade chemicals, and ultrapure water where trace metal ions ruin product quality.
Lightweight & Lower Installation Cost – Only 15–20% weight of steel tank of same volume. Requires no heavy crane for large vessels. Reduces foundation load and civil work cost.
Customizable Agitation System – Choose top entry, side entry, or bottom entry agitator. Impeller types: turbine (low viscosity mixing), propeller (high flow), anchor (high viscosity), paddle (gentle mixing). Motor: explosion-proof or VFD ready.
Seamless & Leak-proof Construction – Monolithic winding with no welds or joints. Double thickness at nozzle areas. 100% spark tested or hydrostatic tested before delivery. Zero leakage risk.
Long Service Life & Low Maintenance – Typical lifespan 15–20 years in continuous aggressive service. No repainting, no cathodic protection, no rubber lining replacement. Surface easily washable.
Temperature & Pressure Capable – Operating temperature -10°C to 100°C (vinyl ester up to 110°C). Design pressure from full vacuum to 5 bar (customizable).
FDA & WRAS Compliant Options – Food-grade resin and liner available for potable water, food, and beverage mixing applications.
