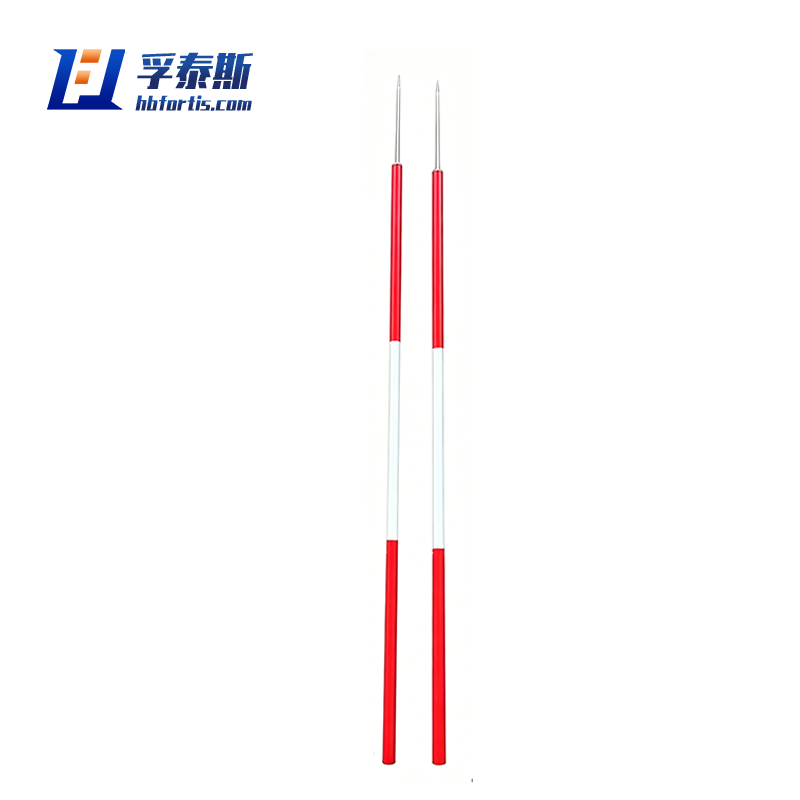

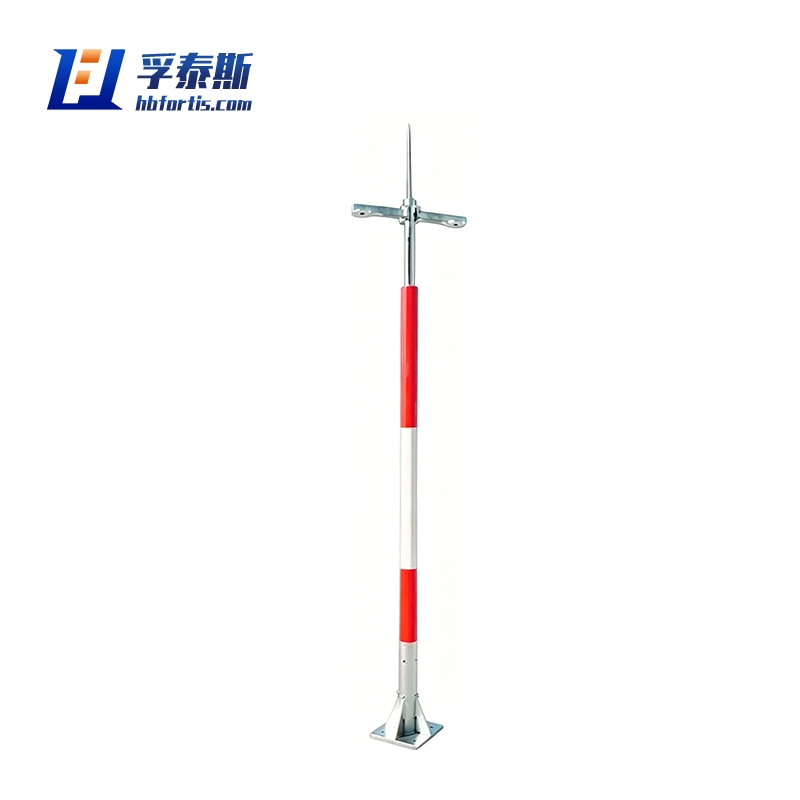

A lightning rod—also known as an air terminal or strike termination device—is the first component of any external lightning protection system (LPS). Our lightning rods are manufactured from high-purity copper, aluminum, or stainless steel to meet IEC 62305, NFPA 780, and UL 96A standards. Unlike decorative or undersized rods, our products feature a corrosion-resistant base, precision-machined tip radius (for corona suppression), and a robust mounting flange suitable for flat roofs, chimneys, towers, and domed structures. We offer both traditional Franklin rods (passive capture) and Early Streamer Emission (ESE) rods (active triggering with advanced electronic timing circuits). Each rod is factory-tested for impulse current handling up to 200kA (10/350 μs waveform) and comes with a 10-year warranty against material defects. For critical infrastructure—airports, data centers, petrochemical plants—our ESE rods provide a larger protected radius (up to 120 meters) with documented laboratory test reports.
Брошюра о продукте Hebei Fortis Technology Co., Ltd
Product Advantages
Verified Compliance with Global Standards
Independently tested to IEC 62305-1 (structural protection), NFPA 780 (US fire code), and UL 96A. Test reports available for local fire marshal approval or insurance underwriter submission.
Choose Your Technology Type
– Franklin (Passive) Rod: Simple, zero-maintenance, proven for 250+ years. Ideal for historic buildings, farms, and residential.
– ESE (Active) Rod: Emits an upward leader earlier than passive rods, increasing capture radius by up to 10x. Perfect for wide-span structures (airport terminals, solar farms).
Exceptional Corrosion Resistance
– Copper tips with nickel-plated base for saltwater/coastal zones.
– Aluminum rods with anodized finish for industrial pollution areas.
– 316 stainless steel for chemical plants and wastewater treatment.
Low Impedance + High Current Handling
Designed to pair with our copper or bi-metallic down conductors. Handles 100–200kA surge without melting or mechanical failure.
Easy Retrofit & Free Design Support
Universal mounting plate fits most existing bases. Provide us with roof type and building height – we will calculate the number of rods and their spacing per IEC 62305-2 risk assessment. CAD drawings available on request.
