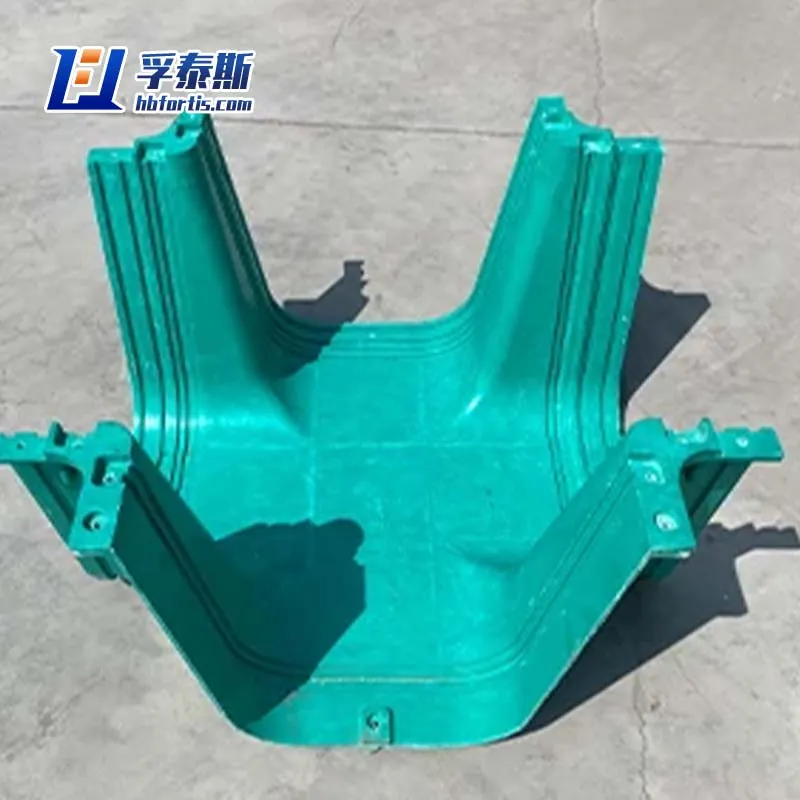

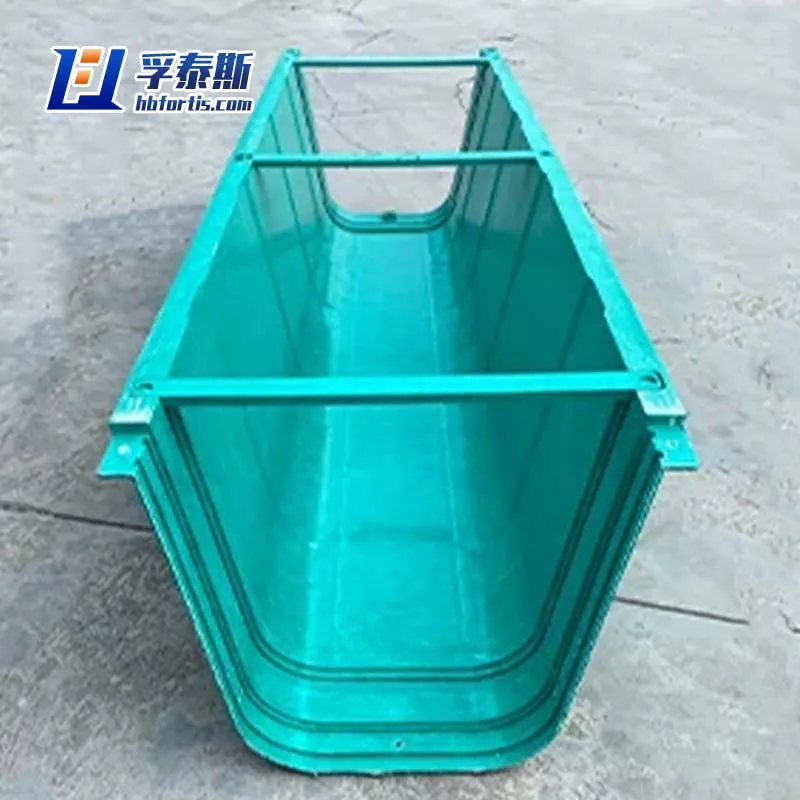

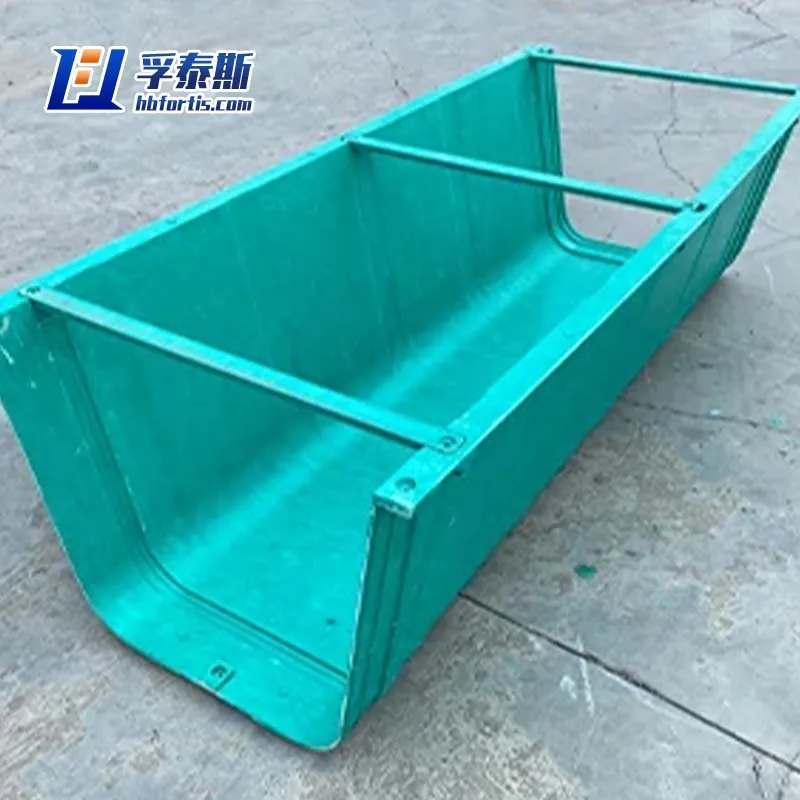

Unlike cast iron or polymer concrete, our FRP drainage channels are engineered for continuous exposure to pH 2-12 effluents and sudden steam cleaning cycles in food processing and petrochemical facilities. Each profile integrates a built-in 0.6% slope and flange anchors to eliminate joint misalignment—a root cause of subgrade erosion. We supply independent third-party test reports for flexural strength (≥210 MPa) and UV stability (QUV 2000h) per ASTM standards, enabling your civil engineers to specify with verified data, not marketing claims.
Брошюра о продукте Hebei Fortis Technology Co., Ltd
Product Advantages
Superior chemical resistance: Withstands prolonged exposure to acids (sulfuric, hydrochloric, nitric), alkalis, seawater, deicing salts, fuels, oils, and aggressive industrial effluents that would destroy concrete or galvanized steel within months.
Lightweight & easy installation: 80% lighter than concrete channels and 40% lighter than steel, allowing two workers to install a full system without cranes or excavator assists. Modular design snaps or bolts together quickly, reducing trenching width and backfill volume.
High load capacity: Engineered for load classes A15 through F900 per EN 1433 standards. Supports heavy forklifts, container trucks, aircraft, and port equipment without cracking or deformation.
Zero corrosion & maintenance: No rust, no spalling, no coating required. The non-porous surface resists freeze-thaw damage, chemical attack, and biological growth. Never needs scraping, painting, or cathodic protection.
Leak-proof joints: Factory-molded rubber gaskets or resin-bonded joints create a continuous, waterproof channel that eliminates groundwater infiltration and fugitive emission leaks – critical for chemical containment applications.
Integrated anti-slip safety: Grating covers available with anti-slip surfacing (quartz, silicon carbide, or molded texture) meeting international safety standards. Reduces slip-and-fall liability in wet, oily, or icy environments.
Customizable design: Available in 100mm to 500mm internal widths, standard or deep profiles, with matching grating options. Custom colors, resin systems (vinyl ester, phenolic for fire resistance), and UV protection available.
Long service life: 30+ years in aggressive chemical and marine environments – documented in real-world applications where concrete drains were replaced every 5–7 years.
Application Scenarios
Industrial plant: chemical plant, oil platform, pharmaceutical plant, electroplating workshop, battery manufacturing plant and other corrosive environment.
Sewage treatment plant and municipal engineering: drainage around aeration tank and sedimentation tank, as well as drainage of sidewalks and plazas.
Food and beverage industry: slaughterhouses, breweries, dairy plants and other places that require high hygiene standards and acid and alkali resistant detergents.
High standard farmland construction: as branch canal, bucket canal and agricultural canal, realize the precise water transmission from water source to field.
Water-saving irrigation project: as the main water supply pipeline, it is compatible with drip irrigation and sprinkler irrigation system to ensure that water source can be delivered to each area efficiently and with low loss.
Greenhouse and greenhouse: as the main indoor water channel, moisture-resistant and corrosion-resistant.
Landscape irrigation: water supply for large green areas such as parks and golf courses, which is beautiful and durable.
Parameter Specifications
|
Product |
FRP drainage channel / FRP irrigation channel |
||
|
|
|||
|
Model |
Dimension(mm) |
Height(mm) |
Length(mm) |
|
FT-DC11 |
115×85 |
115×85 |
1000 |
|
FT-DC16 |
160×132 |
150×114 |
1000 |
|
FT-DC21a |
210×170 |
200×164 |
1000 |
|
FT-DC21b |
210×165 |
300×270 |
1000 |
|
FT-DC21c |
210×170 |
200×164 |
1000 |
|
FT-DC21d |
210×165 |
300×290 |
1000 |
|
FT-DC26a |
260×220 |
250×220 |
1000 |
|
FT-DC26b |
260×220 |
250×220 |
1000 |
|
FT-DC31a |
310×270 |
300×264 |
1000 |
|
FT-DC31b |
310×270 |
300×264 |
1000 |
|
FT-DC41 |
410×355 |
400×357 |
1000 |
|
FT-DC51 |
516×454.5 |
530×485 |
1000 |
|
FT-DC501 |
500×400 |
315 |
1000 |
|
FT-DC503 |
500×400 |
215 |
3000 |
