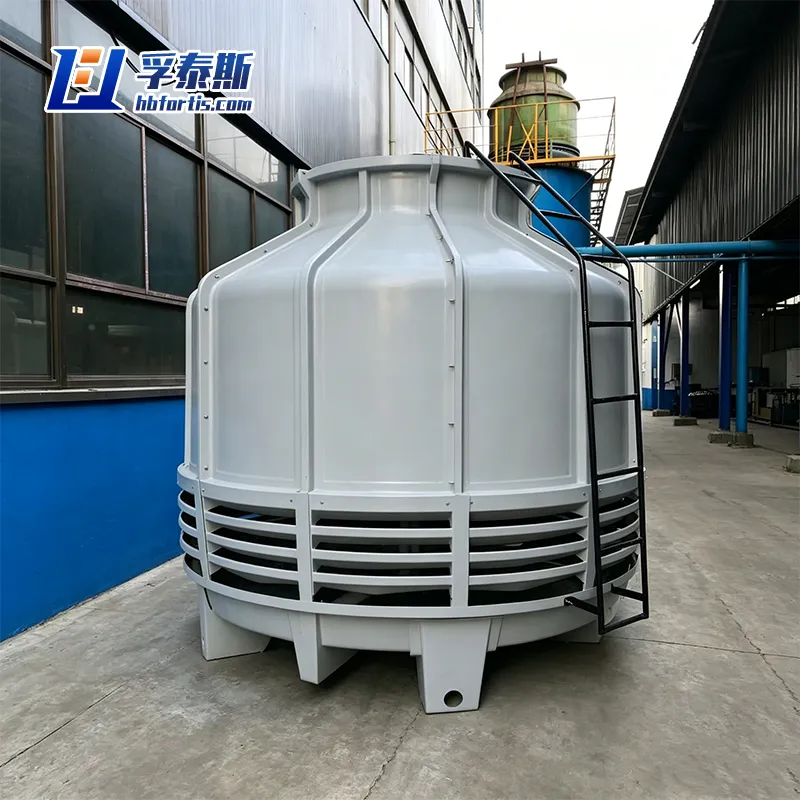

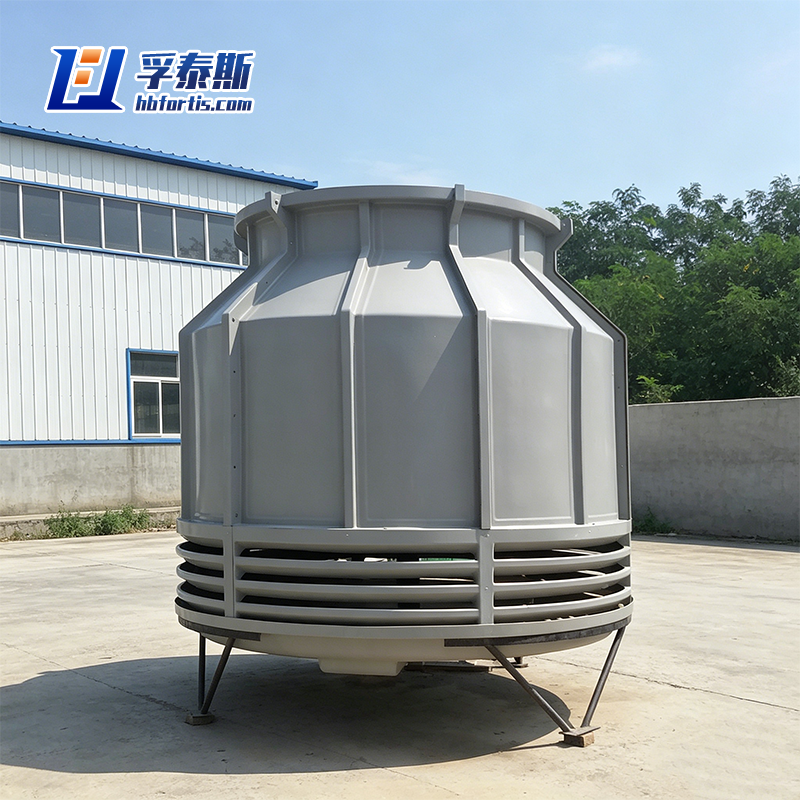

Our FRP Cooling Tower is a lightweight, corrosion-resistant heat exchange device for industrial and commercial cooling. Made of high-strength fiberglass reinforced plastic, it features efficient evaporative heat dissipation, low noise operation, and a long service life of 15–20 years. It is widely applicable to chemical, electronic, and HVAC systems, with customizable cooling capacity to meet diverse demands.
Брошюра о продукте Hebei Fortis Technology Co., Ltd
Parameter Specifications
This solution offers comprehensive advantages in corrosion resistance, insulation, lightweight construction, and safety. While FRP grating doesn't replace metal grating in every scenario, it emerges as the most cost-effective and reliable option when corrosion is a primary concern or specialized requirements for insulation, lightweight performance, and safety are critical. The material's long service life and low maintenance costs make it an ideal choice for these applications.
Application Scenarios
Central air conditioning system: Refrigeration station for commercialbuildings, hotels and hospitals.
Industrial refrigeration: processcooling for food processing, chemi-cal, pharmaceutical and plastic in-dustries.
Power industry: auxiliary coolingsystem for thermal power plant andnuclear power plant.
Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants.
Parameter Specifications
|
Product |
Low Noise Type Counterflow Cooling Tower |
||||||||||
|
|
|||||||||||
|
Model |
τ=27℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Power (kw) |
weight (kg) |
inlet pressure 10⁴Pa |
noise at 10m dB (A) |
|||
|
Total Height |
Maximum Diameter |
self-weight |
operating weight |
||||||||
|
FT-LC12 |
15 |
2033 |
1210 |
7200 |
700 |
0.6 |
206 |
484 |
1.96 |
40.3 |
|
|
FT-LC20 |
24 |
2123 |
1460 |
12400 |
800 |
0.8 |
230 |
514 |
2 |
41.1 |
|
|
FT-LC30 |
35 |
2342 |
1912 |
18000 |
1200 |
0.8 |
406 |
956 |
2.21 |
43.5 |
|
|
FT-LC40 |
46 |
2842 |
1912 |
21500 |
1200 |
1.1 |
478 |
1118 |
2.6 |
43.5 |
|
|
FT-LC50 |
57 |
2830 |
2215 |
28000 |
1400 |
1.5 |
596 |
1480 |
2.65 |
44.7 |
|
|
FT-LC60 |
68 |
3080 |
2215 |
32300 |
1400 |
1.5 |
642 |
1592 |
2.9 |
45.7 |
|
|
FT-LC70 |
79 |
3094 |
2629 |
39200 |
1600 |
2.2 |
790 |
2064 |
2.78 |
47 |
|
|
FT-LC80 |
92 |
3344 |
2629 |
43400 |
1600 |
2.2 |
875 |
2243 |
3.03 |
47.5 |
|
|
FT-LC100 |
114 |
3294 |
3134 |
56000 |
1800 |
3 |
973 |
3064 |
2.86 |
50 |
|
|
FT-LC125 |
142 |
3544 |
3134 |
67200 |
1800 |
4 |
1063 |
3290 |
3.15 |
50.7 |
|
|
FT-LC150 |
171 |
3553 |
3732 |
84000 |
2400 |
4 |
1695 |
4125 |
2.9 |
52 |
|
|
FT-LC175 |
200 |
3803 |
3732 |
94300 |
2400 |
5.5 |
1835 |
4461 |
3.15 |
53 |
|
|
FT-LC200 |
231 |
3835 |
4342 |
112000 |
2800 |
5.5 |
2132 |
5592 |
3.01 |
54.6 |
|
|
FT-LC250 |
283 |
4085 |
4342 |
134300 |
2800 |
7.5 |
2344 |
6365 |
3.26 |
55.6 |
|
|
FT-LC300 |
334 |
4223 |
5134 |
168000 |
3400 |
7.5 |
3558 |
9229 |
3.5 |
56.8 |
|
|
FT-LC350 |
395 |
4473 |
5134 |
187400 |
3400 |
11 |
3860 |
9906 |
3.75 |
57.3 |
|
|
FT-LC400 |
455 |
4618 |
6044 |
224000 |
3800 |
11 |
4300 |
12086 |
3.6 |
58.8 |
|
|
FT-LC450 |
514 |
4868 |
6044 |
242000 |
3800 |
11 |
4646 |
13464 |
3.85 |
58.8 |
|
|
FT-LC500 |
576 |
5219 |
6746 |
280000 |
4200 |
15 |
5768 |
16258 |
3.7 |
60 |
|
|
FT-LC600 |
680 |
5719 |
6746 |
302200 |
4200 |
18.5 |
6570 |
18360 |
4.2 |
61 |
|
|
FT-LC700 |
790 |
5589 |
7766 |
393500 |
5000 |
18.5 |
6915 |
23194 |
3.95 |
61.4 |
|
|
FT-LC800 |
890 |
6089 |
7766 |
408000 |
5000 |
22 |
7983 |
25982 |
4.45 |
61.4 |
|
|
FT-LC900 |
1035 |
6040 |
8836 |
505200 |
6000 |
22 |
8934 |
32568 |
4.25 |
62.6 |
|
|
FT-LC1000 |
1139 |
6540 |
8836 |
510300 |
6000 |
30 |
10560 |
36420 |
4.75 |
63.1 |
|
